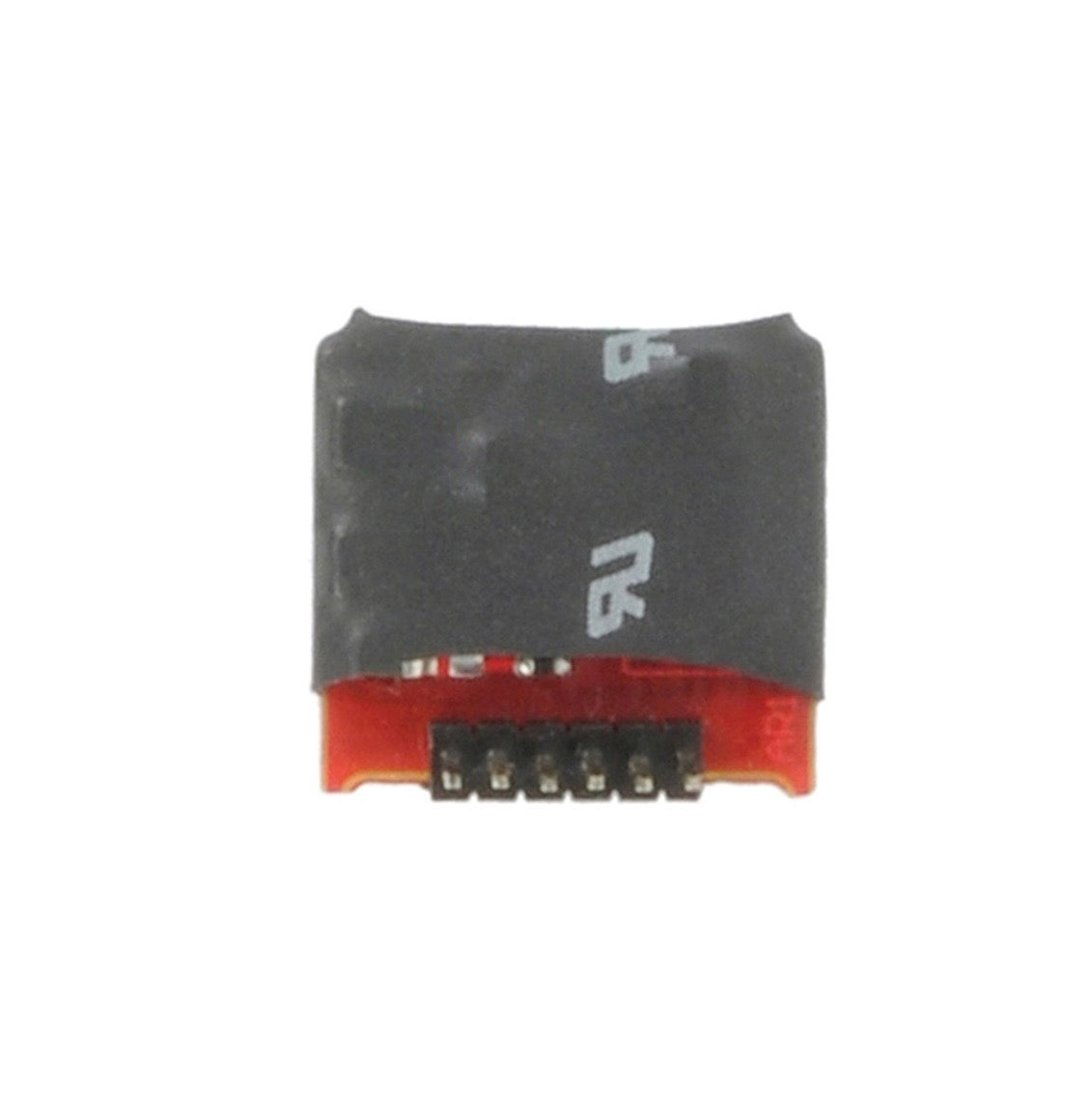

Bachmann 6 Pin 90° DCC Loco-Decoder 36-556RA

Bachmann 6 Pin 90° DCC Loco-Decoder 36-556RA

Brand - bachmann

Colour -  multi

Size -  6 pin

qty - 1 ct

scale - multi

A 6 Pin DCC Decoder designed specifically for use in the Graham Farish N scale Class 3F ‘Jinty’ (item No. 372-21x) and Class 64XX ‘Pannier Tank’ (item No. 371-98x) locomotives.

Highlights include:

Dual-mode DCC/DC decoder with Back EMF function

1.0A continuous load

2 powered function outputs

Operating Modes

NMRA DCC with 14, 28 and 128 speed steps

Short and Long addresses

Advanced consist addressing

DCC and DC operation

Motor Control Features

1.0A continuous load

Back EMF speed regulation

Silent 15.6Khz pulse width modulation of motor voltage

Adjustable acceleration and braking

15 pre-set speed curves

28-point user programmable speed curve

Supports brake on DC

Function Outputs

2 powered function outputs

100mA load per output

NMRA function mapping to match outputs with user selectable function key

Dimensions

14.5mm x 9.5mm x 3.5mm

Default Address

Address 3

This decoder is manufactured on behalf of Bachmann Europe by Soundtraxx. For full technical specifications and instructions, please refer to the Soundtraxx user guide for MC1 decoders at www.soundtraxx.com/manuals/mobile-decoders
